R5 EV
车辆基本参数 Basic parameters of vehicle | |||||
| 主体参数 Main parameters | 车身尺寸（长×宽×高）（mm） over size(L*W*H) | 5460*1880*2395 | |||

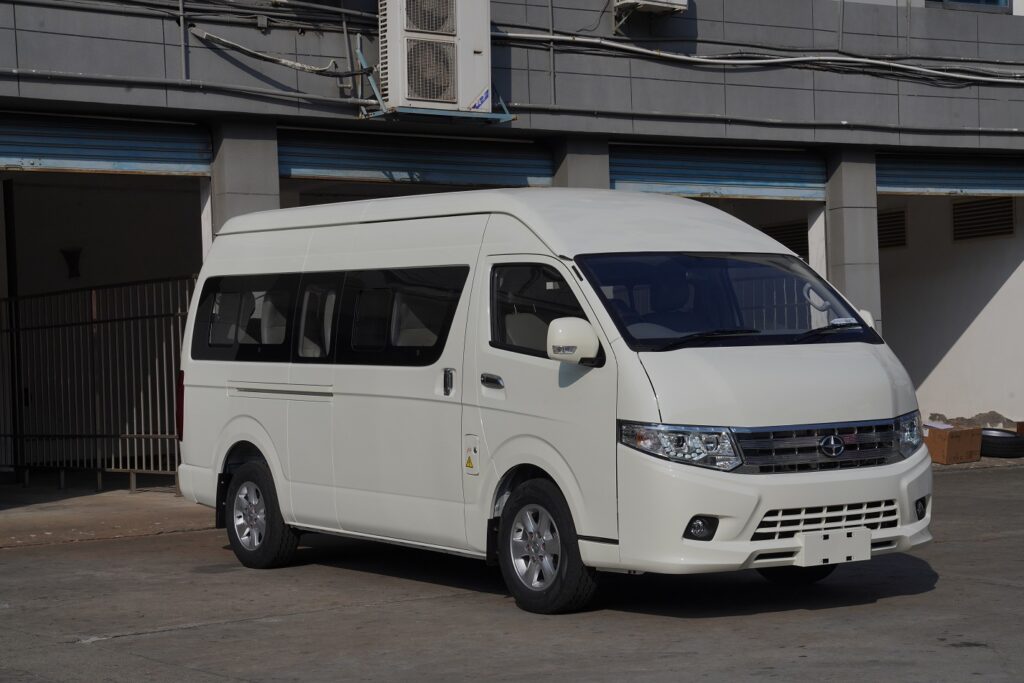

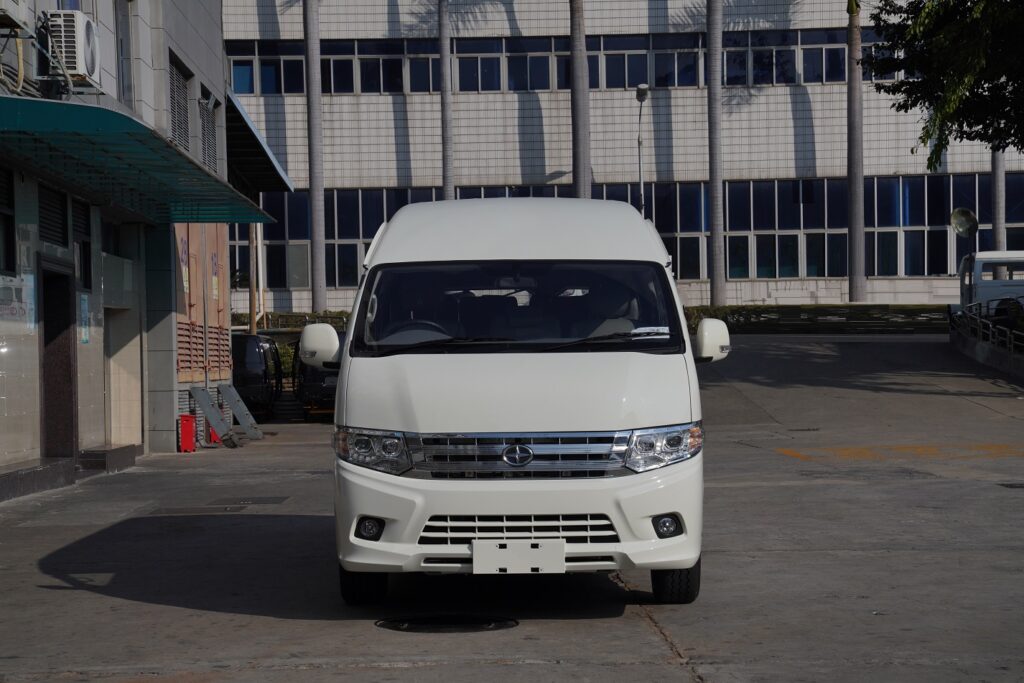

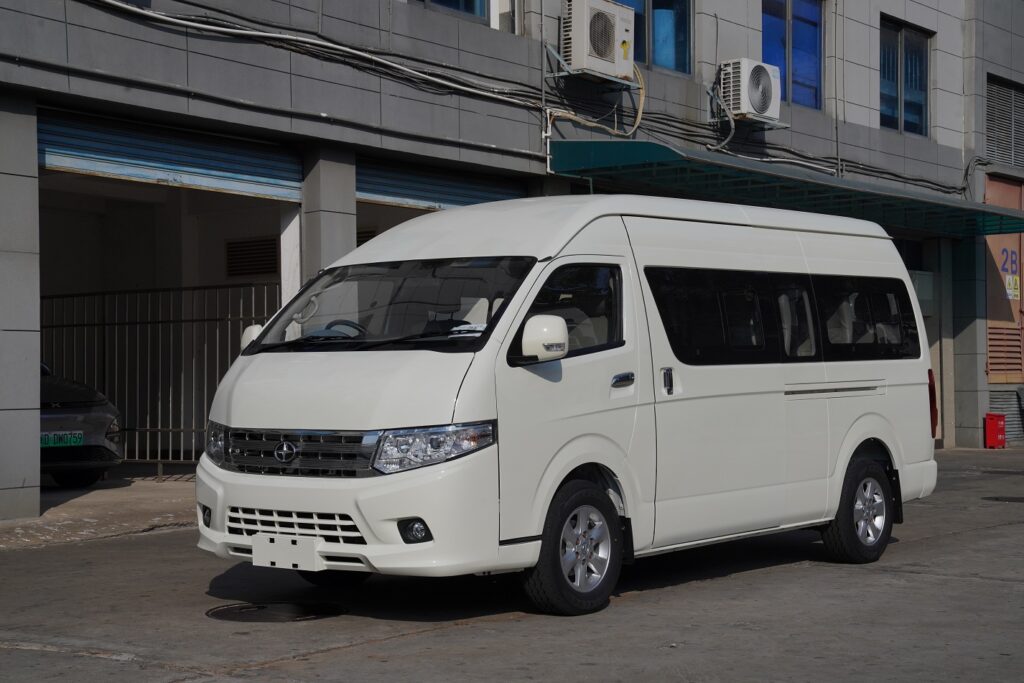

前脸 Front face | as photos | ||||
方向盘 Wheel | RHD | ||||
轴距（mm） Wheel base | 3110 | ||||
整备质量(kg) Curb weight | 2650 | ||||
| 接近角 / 离去角（。） Approach angle / departure angle | 16/17 | ||||
前 / 后悬（mm) Front/rear overhang | 1220/1110 | ||||
前 / 后轮距（mm) Front/rear tread | 1655/1650 | ||||
| 动力性能 Dynamic performance | 最高车速（km/h） Max speed | 80 | |||
最大爬坡（%） Max climbing degree | 30 | ||||

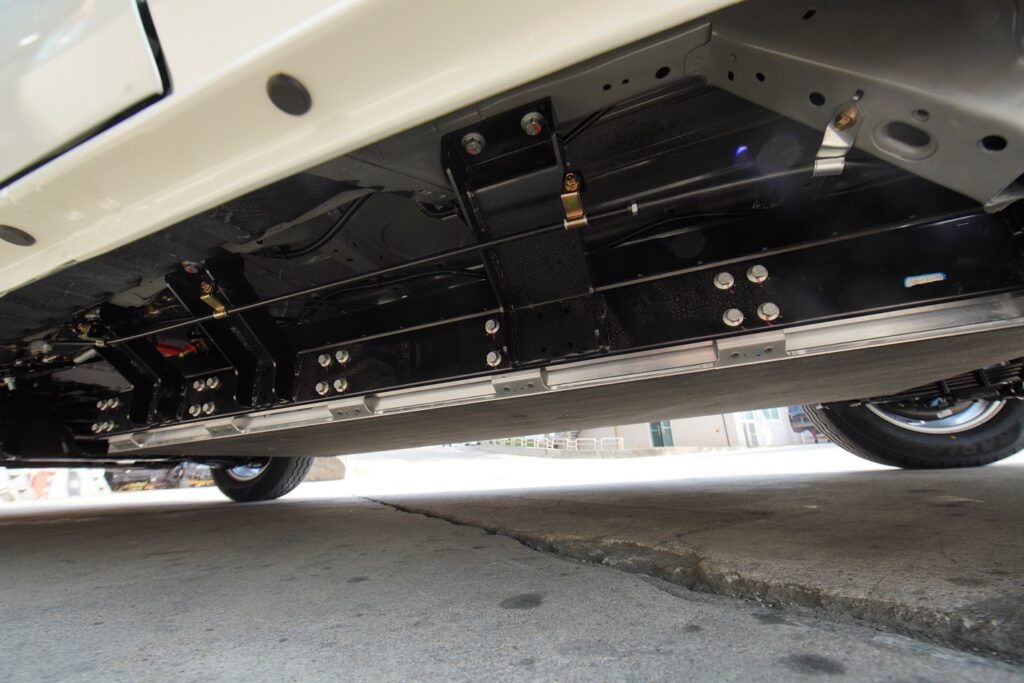

动力电池容量（kWh） Battery capacity | CATL 77.28 （3rd Generation) | ||||
| 工况法续航里程（km） Driving Mileage under GB | 330 | ||||

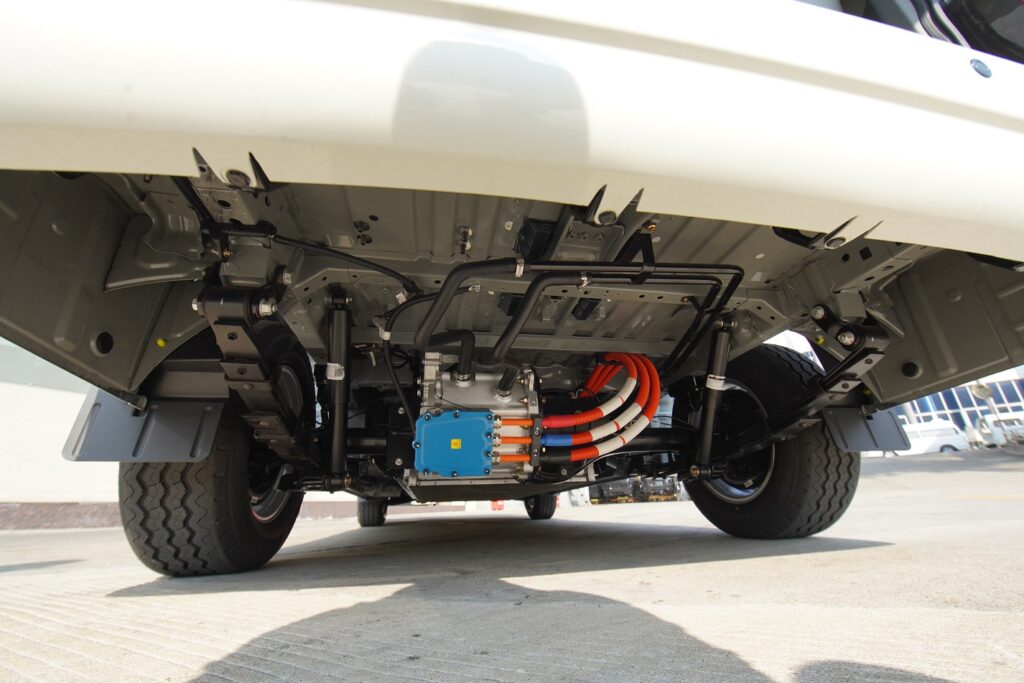

驱动电机类型 Motor type | 永磁同步、液冷 Permanent magnet synchronous motor (PMSM) water cooling | ||||
| 驱动电机峰值功率（KWh）/扭矩（N.m） Max rated power/ torque | 120/330 | ||||
| 底盘转向 Chasis steering | 驱动方式 Driving type | 后置后驱 rear driver | |||
前悬架类型 Front suspension | 前双横臂式独立悬挂 front double wishbone independent suspension | ||||
后悬架类型 Rear suspension | 后可变刚度板簧 rear variable rate leaf spring | ||||
转向类型 Steeling type | 电动助力转向 electric power steering | ||||
| 车轮制动 Brake type | 车轮规格 Tyre | 225/65R16LT | |||
5个铝圈 5 aluminum rims | ● | ||||
前 / 后制动器类型 Front/rear brake type | 前盘后鼓 front disc rear drum | ||||
车门数（个） Doors | 4、单侧手动中滑门 manual sliding door | ||||

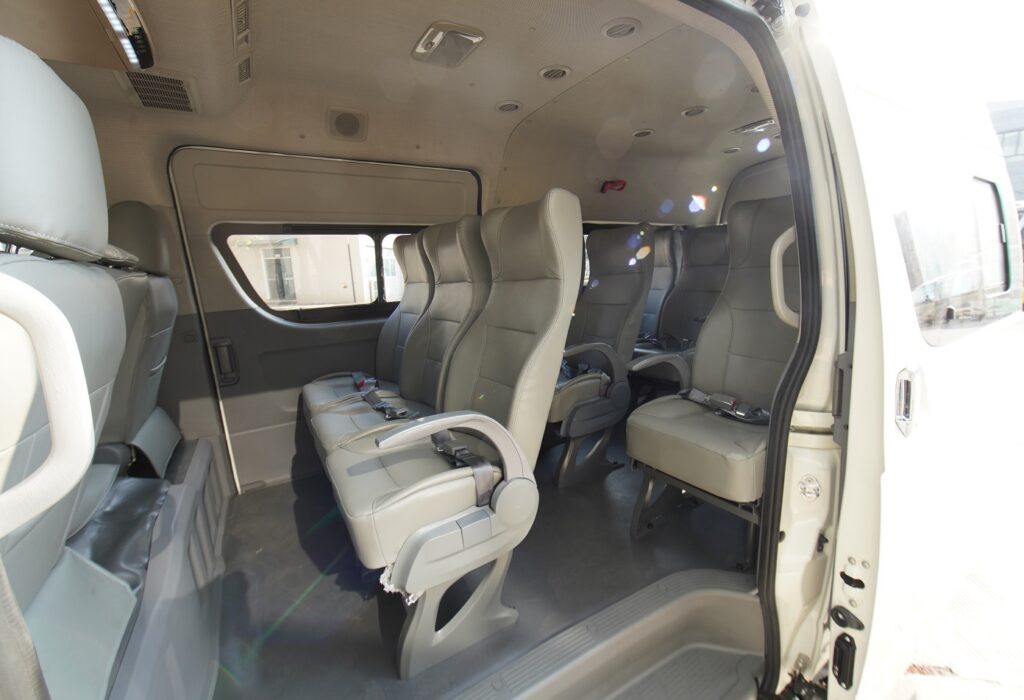

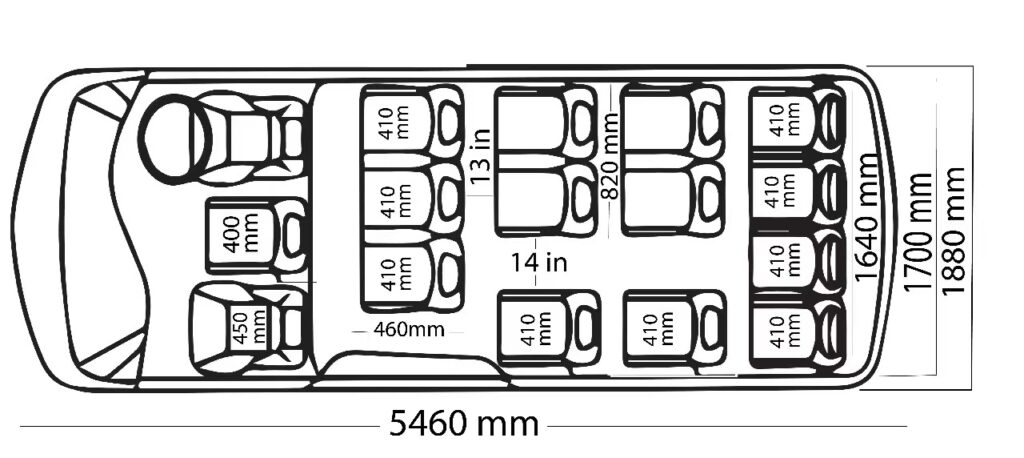

座位数（个） Seats | 16=3+3+3+3+4 | ||||
| 车辆基本配置 | |||||
| 充电配置 Charging configuration | 国标快充 GB Chinese standard fast charging | ● | |||
| 6.6kW充电桩 6.6kw AC slow charge station Chinese standard | ● | ||||
| 安全配置 Safty configuration | ABS+EBD | ● | |||
主驾安全带未系提醒 Safety belt reminder | ● | ||||
驾驶座椅三点式安全带 3 point safty belt for driver and co-driver | ● | ||||
后倒车雷达 Rear reverse radar | ● | ||||
高位刹车灯 High-mount brake lamp | ● | ||||
防溜坡功能 Anti sliding fountion | ● | ||||
| 外部配置 Exterior configuration | 防紫外线前挡风玻璃 UV-locking front windscreen | ● | |||
| 镀铬后视镜带转向灯 Chromed wing mirror with turn light | ● | ||||
| 前雾灯带镀铬装饰 Front fog with chormed plated | ● | ||||
镀铬门把手 Chormed handls | ● | ||||
| 间歇式前雨刮 Intermittent front and rear wiper | ● | ||||
| LED 日间行车灯 LED daytime runing lamps | ● | ||||
| 后雨刮后除霜后洗涤 Rear Wiper Rear Washer, Reardefroster | ● | ||||
左右侧窗推拉窗 Rear slidling windows | 4 Pecs | ||||

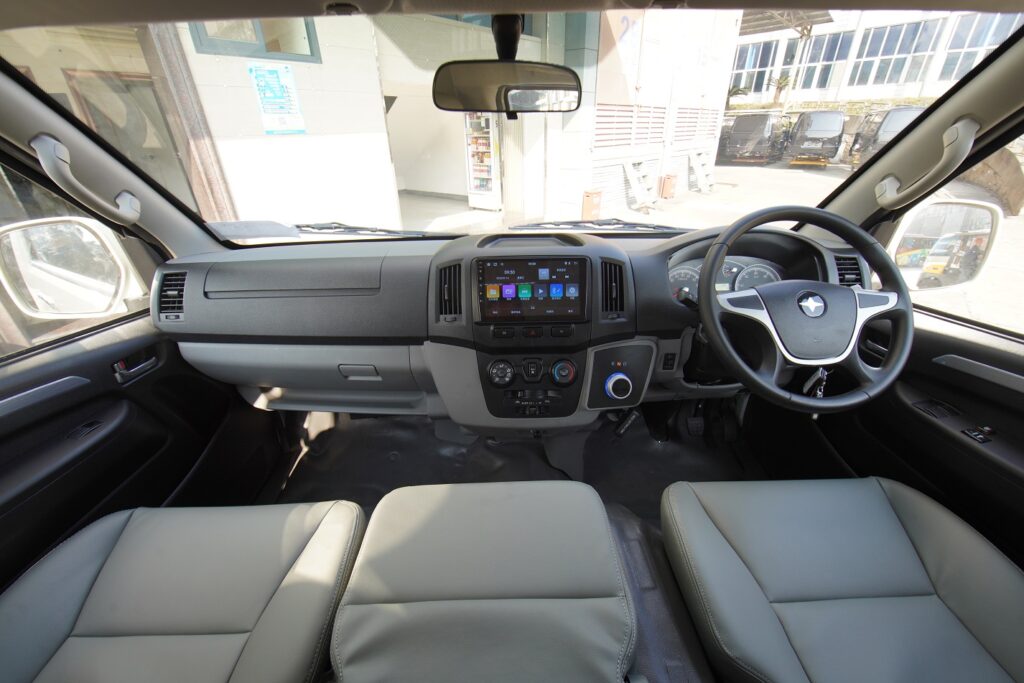

| 内部配置 Interior configuration | 前门电动车窗 Front power windows | ● | |||
| 车内中控锁、遥控钥匙 Remote control centre door loak | ● | ||||
主/副驾遮阳板 Sunproof | ● | ||||
| 上下可调节式方向盘 Tiltable steering wheel | ● | ||||
| 滑移式主副驾驶座 Sliding driver & co-driver seat | ● | ||||
PVC地板 PVC floor | ● | ||||
深灰色顶棚 Dark gray pvc roof | ● | ||||
仿皮座椅 PVC seats | ● | ||||

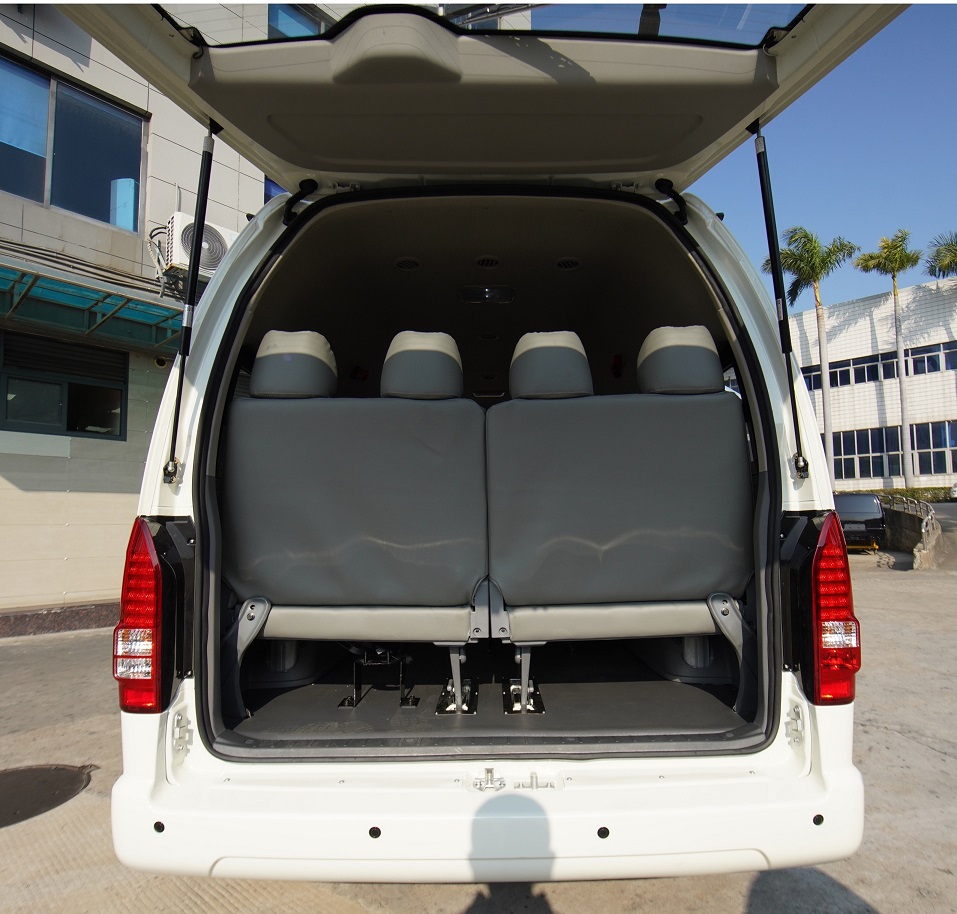

| 最后排吊挂座椅 Last row hanging seats | ● | ||||
| 乘客区USB接口 USB Port for Rear passenger | ● | ||||
高亮度阅读灯 Rear lamp | ● | ||||
| 多媒体配置 Media | MP5 | ● | |||
倒车影像 Rear Camera | ● | ||||
17寸液晶彩显 17 inch LCD | ● | ||||
| 空调 AC | 制冷前空调 Front AC | ● | |||
前PTC暖风 PTC heater | ● | ||||

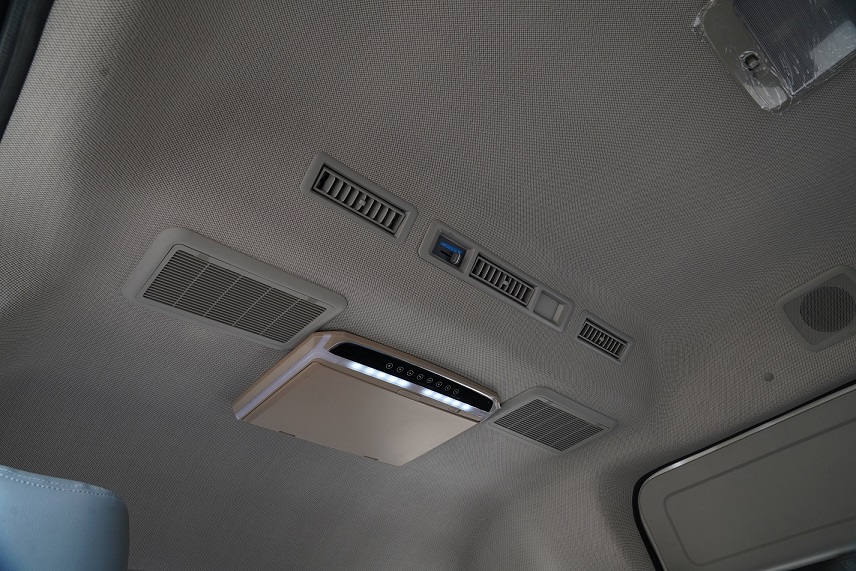

乘客区空调 Rear AC | ● | ||||
| 随车工具 On board tools | 随车工具包 Tools bag | ● | |||
千斤顶 Lifting jack | ● | ||||
三角警示牌 Waring triangle | ● | ||||
灭火器 Fire Extinguisher | ● | ||||
